Doepfer A-183-9 Quad USB Power Supply

Item 18 of 28
€ 55,00 € 49,00 (including VAT / BTW)
Stock 1 pc.
Overview

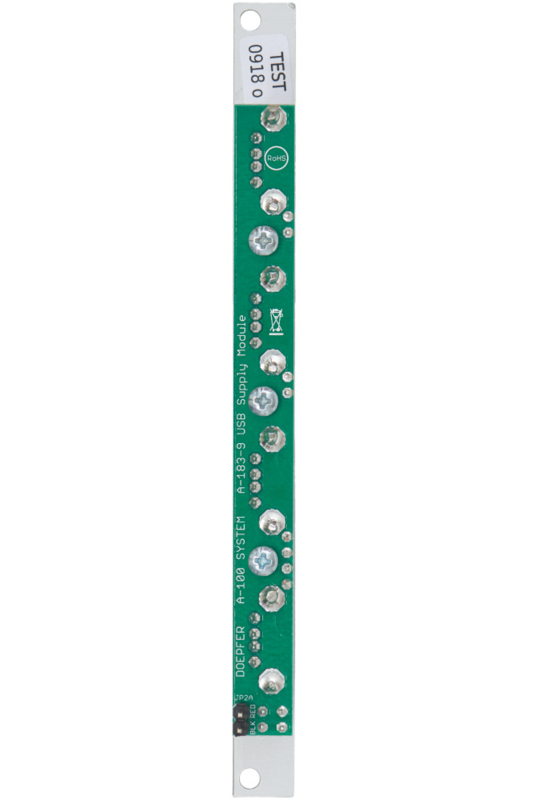

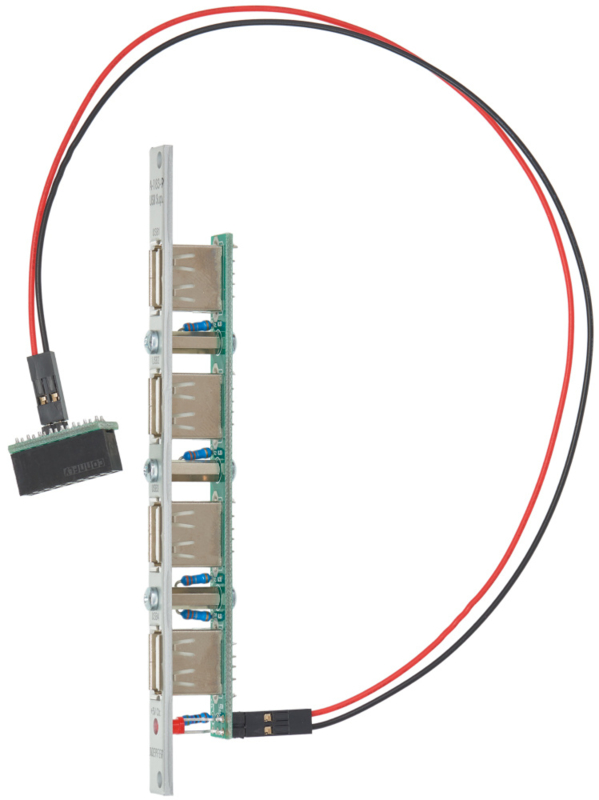

Doepfer A-183-9 Quad USB Power Supply

Module A-183-9 is a simple power supply for up to four devices which can be powered via USB (e.g. keyboards, smartphones). An LED shows is the +5V are present.
The module has no USB function but provides only the +5V supply for USB devices.
A control LED shows if the +5V are present.

Note: The module requires an A-100 case with built in power supply A-100PSU3 ! Only this A-100 supply has the required +5V available. We do not recommend the usage of an older A-100 case with A-100PSU2 as this would require the +5V adapter A-100AD5 and the max. current would be limited to 100mA. To find out your A-100 case is equipped with the A-100PSU3 please refer to the FAQ page.

All features, specifications, prices, date of delivery are still without obligation !

Width: 2 TE / 2 HP / 10.0 mm
Depth: 30 mm (measured from the rear side of the front panel)
Current: +0mA (+12V) / 0mA (-12V) /  ? mA (+5V),  the +5V supply current depends upon the devices connected to the module
