4ms Shuffling Clock Multiplier Rev2 (SCM)
4ms Shuffling Clock Mulitplier Rev2 (SCM)
The Shuffling Clock Multiplier (SCM) produces eight multiplied clock tempos from a single input clock, ranging from x1 to x8 (x32 by using the Breakout). Some of the outputs can be shuffled/swung. The amount of shuffle is controlled by a CV Slip jack. A Rotate CV jack re-assigns the multiplication number of each jack. More features of the SCM can be controlled by the SCM Breakout.
Features:
- Multiply-by-1 to Multiply-by-32, on 8 output jacks
- Five Slipped/Shuffled/Skipped clock outputs (S3, S4, S5, S6, S8). Each is based on a multiple of the input clock frequency (x3, x4, x5, x6, and x8, respectively)
- Three steady clock outputs (x1, x2, and x8), which are not effected by Slip/Shuffle/Skip effects
- CV Rotate jack to shift multiply-by amount on all jacks
- CV Slip causes particular beats to land ahead in time
- Connects to the SCM Breakout for controlling more features: Pulse Width, Shuffle pattern, Skip, Re-sync, Mute, and 4x Fast
- ISP header: Connects to in-circuit programmer such as AVR ISP MKII for reprogramming code
- Maximum input frequency 3kHz
Module size:

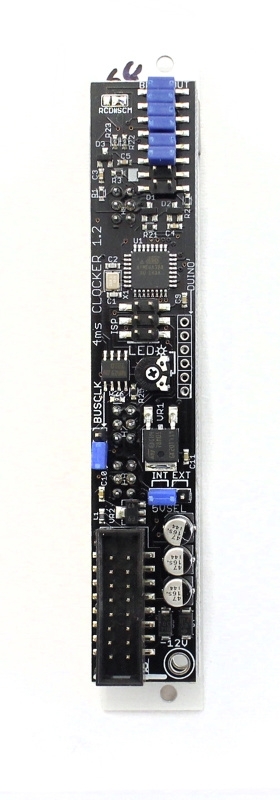

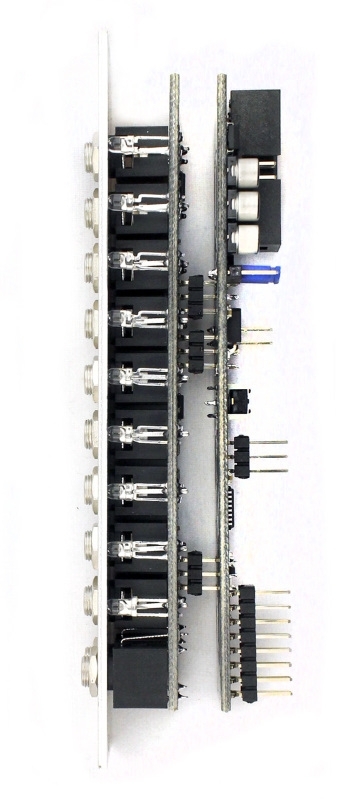

The SCM is 4HP and 48mm (1.85") > 35mm deep
Power consumption:
- 5VSEL Jumper set to INT:
- 33mA maximum power draw from +12V rail
- 0mA max on the +5V rail
- 4mA maximum power draw on the -12V rail
- 5VSEL Jumper set to EXT:
- 19mA maximum power draw on the +12V rail
- 14mA max on the +5V rail
- 4mA maximum power draw on the -12V rail
Manual:
User Manual:
- User Manual Version 1.0.4 (updated August 18, 2010)
- How CV Rotation works Graphical! (written for RCD, but applies to SCM)
- SCM Breakout User Manual (v2)
DIY Panel templates:
Latest Firmware upgrades:
- How to Update your SCM by yourself:
- Download the latest hex file: SCM firmware hex file (v1.0.4) updated February 2, 2011
- Follow these instructions: Updating Firmware on AVR chips
- Other files for developing your own custom code to run on the SCM or RCD:
- AVR Studio 4 project (1.0.4 version, use this to compile code on Windows)
- avr-gcc SCM project (1.0.4 version, use this to compile code on Mac OSX or Linux)
