RYK Modular - Night Rider - Quad Sequential Resonator

RYK Modular - Night Rider - Quad Sequential Resonator

QUAD SEQUENTIAL RESONATOR
A sequencer and a filter-bank got together . . .
. . . and a love child was born !

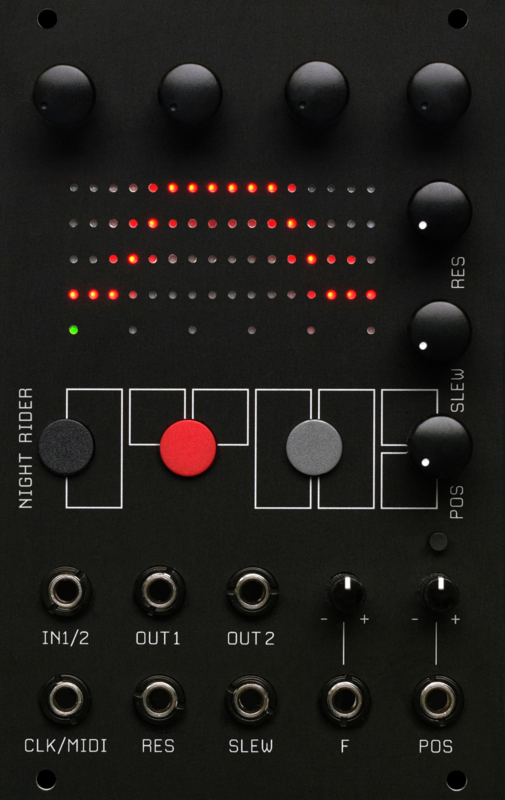

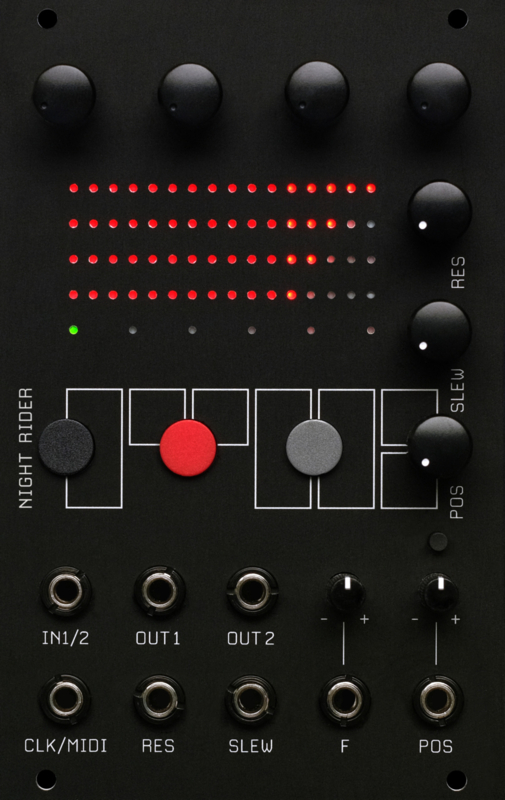

Introducing NIGHT RIDER, from RYK Modular
Four multi model filters with stereo capability, combined with a six-stage four-channel modulation sequencer
Finally a filter bank that unifies the control of multiple parameters, enabling a spaghetti-free approach to formant animation fun NIGHT RIDER cleverly turns the dials to where you want them, when you want, via it's unique four channel modulation sequencer
Create dreamy swooshing 70’s phaser filter sweeps Phenomenal for phoneme vocal formant rasps and wheezes
Plucking great for strumming Karplus Strong twangs, and pinging filter pings !
Or, turn your silk into shredded cabbage, with the built in bad-ass clipping-saturator

TECHNICAL SPECIFICATIONS:
Frequency range - from rumble to wispy
Resonance/Feedback range - from tame to insane
Individual Filter levels - silent to beyond 11, for serious saturation-clipped sonic destruction

FEATURES:
Four filter blocks, with multiple models , including:
6db BPF [ pingable ]
12db BPF [ pingable ]
12db variable width BPF
Comb Filter for Karplus Strom [ pluckable & flanger vibes ]
All Pass filter [ crazy Phaser vibes ]
Dual Input and Stereo output, with Pan control for each filter in the stereo field. Input can
be Mono [ CH1 - 1,2,3,4 ] or Dual [ CH1-1,2 CH2 - 3,4 ]
Modulation Sequencer capable of being clocked, scanned, and interpolated
CV inputs for sequencer Interpolated scanning, 1V/Oct frequency offset, Slew amount,
Resonance amount, Clock or MIDI clock input for sequence animation, MIDI CC
Memory slots for storing and retrieving Filter and animation setups, and retrieving preset formant, and chord based Filter setups

Width 16 HP

Depth 25mm

52mA +12V

9mA -12V

0mA 5V
